Dot-free COB and neon LED strip products

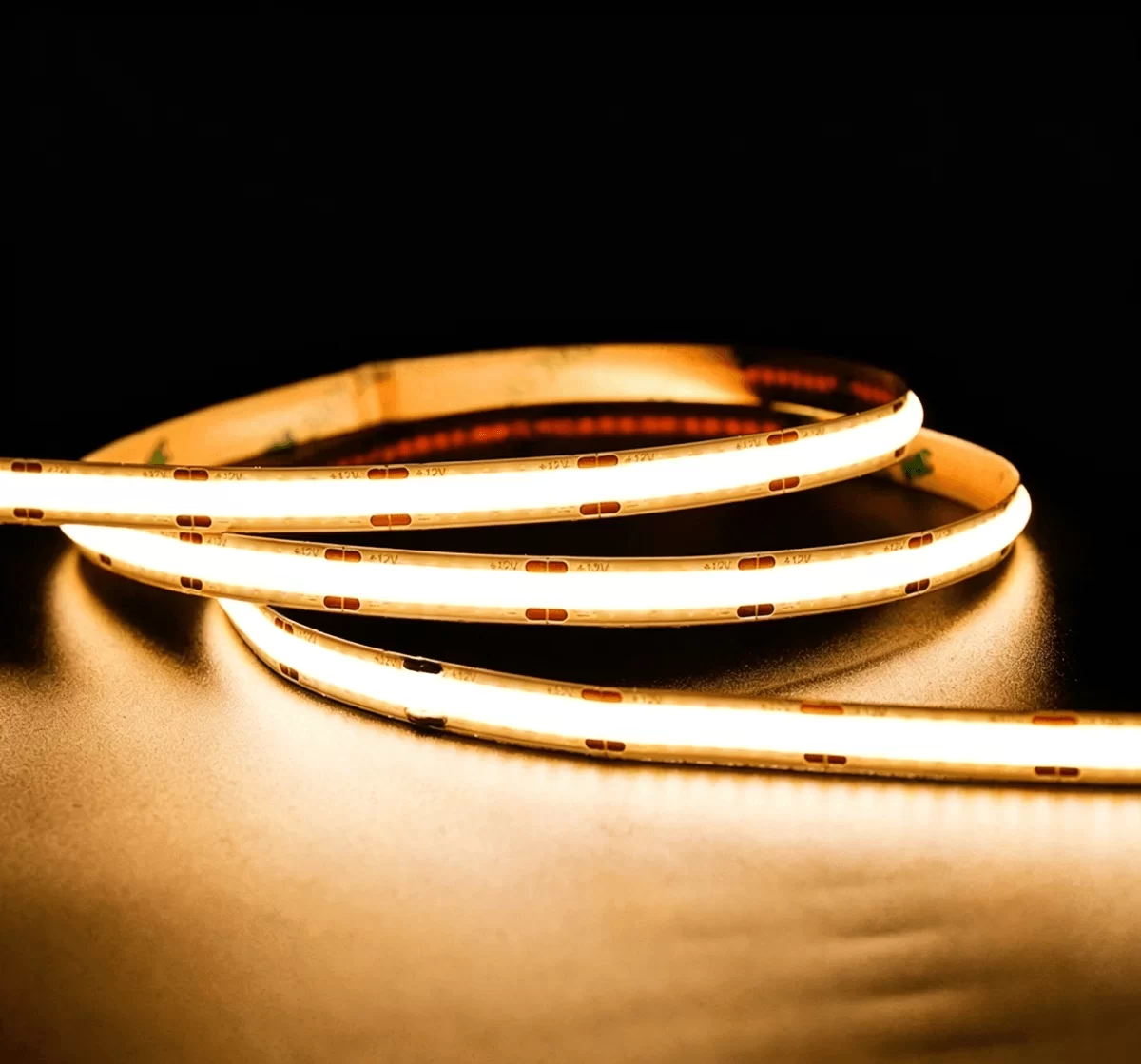

COB LED strip light product image

320LED 8mm width COB Strip Light

Categories ,

•High density COB LEDs
•Linear lighting, without light spot, soft and uniform luminance
•High CRI, high brightness and high efficiency
•Reach ERP energy efficiency F class
•High temperature resistance, long lifespan
•No bracket, flexible COB strip light with better bending performance, seamless butting between two solder points

Model NO. SC-LCOBX-320-10W-12/24V-08F0-90
Product Description
Product Feature: •High density COB LEDs
•Linear lighting, without light spot, soft and uniform luminance
•High CRI, high brightness and high efficiency
•Reach ERP energy efficiency F class
•High temperature resistance, long lifespan
•No bracket, flexible COB strip light with better bending performance, seamless butting between two solder points
Product Specification: All data are based on 1 meter IP20 strip
Product No. LED Qty Voltage Power SDCM Ra CCT Luminous Luminance Beam PCB Layer Width Min.
Efficacy Flux Angle Cutting
SC-LCOB30-320-10W-12V-08F0-90 320 12V 10W ≤3 90 3000K 80lm/W 800lm 140° Double 8mm 25mm
Copper
SC-LCOB40-320-10W-12V-08F0-90 320 12V 10W ≤3 90 4000K 90lm/W 900lm 140° Double 8mm 25mm
Copper
SC-LCOB65-320-10W-12V-08F0-90 320 12V 10W ≤3 90 6500K 95lm/W 950lm 140° Double 8mm 25mm
Copper
SC-LCOB30-320-10W-24V-08F0-90 320 24V 10W ≤3 90 3000K 80lm/W 800lm 140° Double 8mm 50mm
Copper
SC-LCOB40-320-10W-24V-08F0-90 320 24V 10W ≤3 90 4000K 90lm/W 900lm 140° Double 8mm 50mm
Copper
SC-LCOB65-320-10W-24V-08F0-90 320 24V 10W ≤3 90 6500K 95lm/W 950lm 140° Double 8mm 50mm
Copper
Dimension Drawing: 12V
24V
Available Waterproof Grade: IP20, IP65, IP67, IP68
