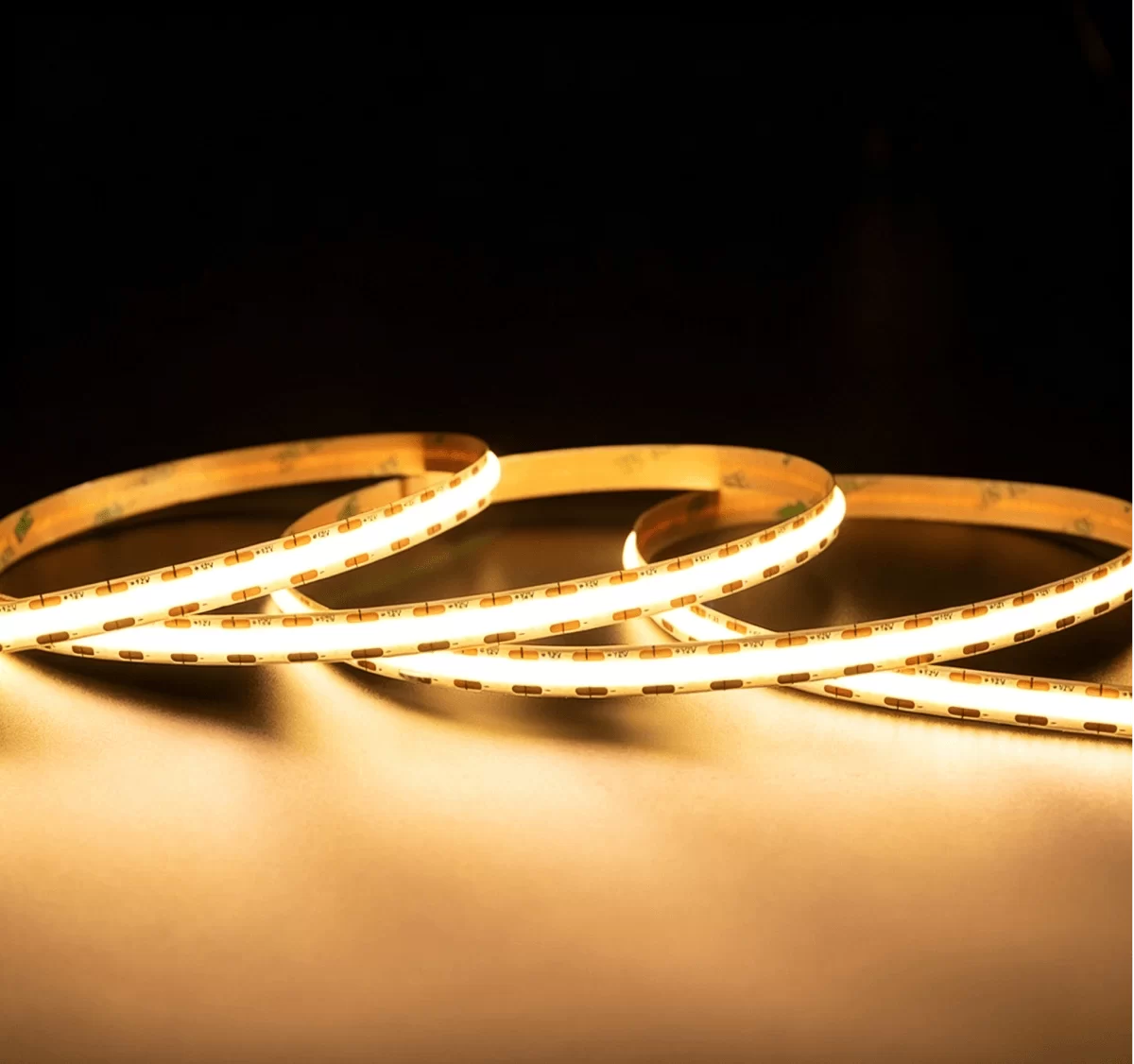

300LED 8mm width COB Strip Light
•High density COB LEDs
•Linear lighting, without light spot, soft and uniform luminance
•High CRI, high brightness and high efficiency
•Reach ERP energy efficiency F class
•High temperature resistance, long lifespan
•No bracket, flexible COB strip light with better bending performance, seamless butting between two solder points
•The min. cutting is only 1cm. Easy to get the proper length for application.
| Model NO. | SC-LCOBX-300-10W-12V-08F0-90 | ||||||||||||
| Product Description | |||||||||||||
| Product Feature: | •High density COB LEDs •Linear lighting, without light spot, soft and uniform luminance •High CRI, high brightness and high efficiency •Reach ERP energy efficiency F class •High temperature resistance, long lifespan •No bracket, flexible COB strip light with better bending performance, seamless butting between two solder points •The min. cutting is only 1cm. Easy to get the proper length for application. |
||||||||||||
| Product Specification: All data are based on 1 meter IP20 strip | |||||||||||||
| Product No. | LED Qty | Voltage | Power | SDCM | Ra | CCT | Luminous | Luminance | Beam | PCB Layer | Width | Min. | |
| Efficacy | Flux | Angle | Cutting | ||||||||||
| SC-LCOB30-300-10W-12V-08F0-90 | 300 | 12V | 10W | ≤3 | 90 | 3000K | 80lm/W | 800lm | 140° | Double | 8mm | 10mm | |
| Copper | |||||||||||||
| SC-LCOB40-300-10W-12V-08F0-90 | 300 | 12V | 10W | ≤3 | 90 | 4000K | 90lm/W | 900lm | 140° | Double | 8mm | 10mm | |
| Copper | |||||||||||||
| SC-LCOB65-300-10W-12V-08F0-90 | 300 | 12V | 10W | ≤3 | 90 | 6500K | 95lm/W | 950lm | 140° | Double | 8mm | 10mm | |
| Copper | |||||||||||||
| Dimension Drawing: | 12V |  |
|||||||||||
| Available Waterproof Grade: | IP20, IP65, IP67, IP68 | ||||||||||||
